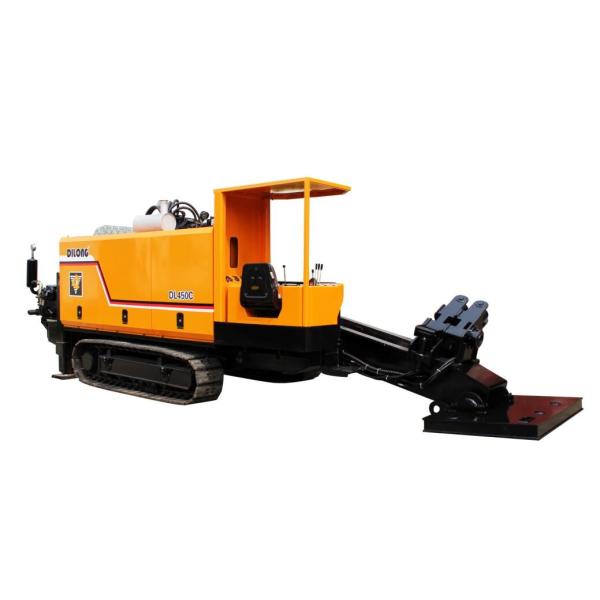

Trenchless Boring Machine For Construction , Directional Drilling Machine

Name: Trenchless Boring Machine For Construction Directional Drilling Machine
Brand: DILONG
Price: 1 USD

China Trenchless Boring Machine For Construction , Directional Drilling Machine wholesale

Brand Name : DILONG

Model Number : DL450C

Place of Origin : NANJING

MOQ : ONE SET

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

DIMENSION : 7400*3200*2485

WEIGHT : 13.5t

ENGINE : KUMMINS

THRUST FORCE : 450KN

PULLBACK FORCE : 450KN

Contact Now

Trenchless construction Hydraulic drilling rig machinery

INTRODUCES

1, With the use of five-pump hydraulic system ,DL450C drilling machine has better working efficiency and rational power distribution .

2, Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

3, The oil cylinder direct-driven pull-push system employed has such features as good stability at low speed and low power loss.

4, The patented holder can realize automatic centering while holding the drill pipe to protect drill pipe and holder in various adverse conditions

MAIN TECHNICAL PARAMETERS

Engine	kw	194/2200	Dimension(LWH)	mm	740023002485
Max.thrust force	KN	450	Weight	T	12.8
Max.pullback force	KN	450	Diameter of drill rod	mm	Φ83
Max.torque	N.m	18000	Lendht of drill rod	m	3
Max.Rotary speed	rpm	140	Max diameter of pullback pipe	mm	Φ150-Φ1000
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~600
Max.mud puump flow	L/min	450	Incidence angle	.	12~25
Max.mud pressure	Mpa	8±0.5	Climbing angle	.	14

Trenchless Boring Machine For Construction , Directional Drilling Machine

Whatsapp number:008618936869890

EMAIL:trade@njdl.com

HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE
